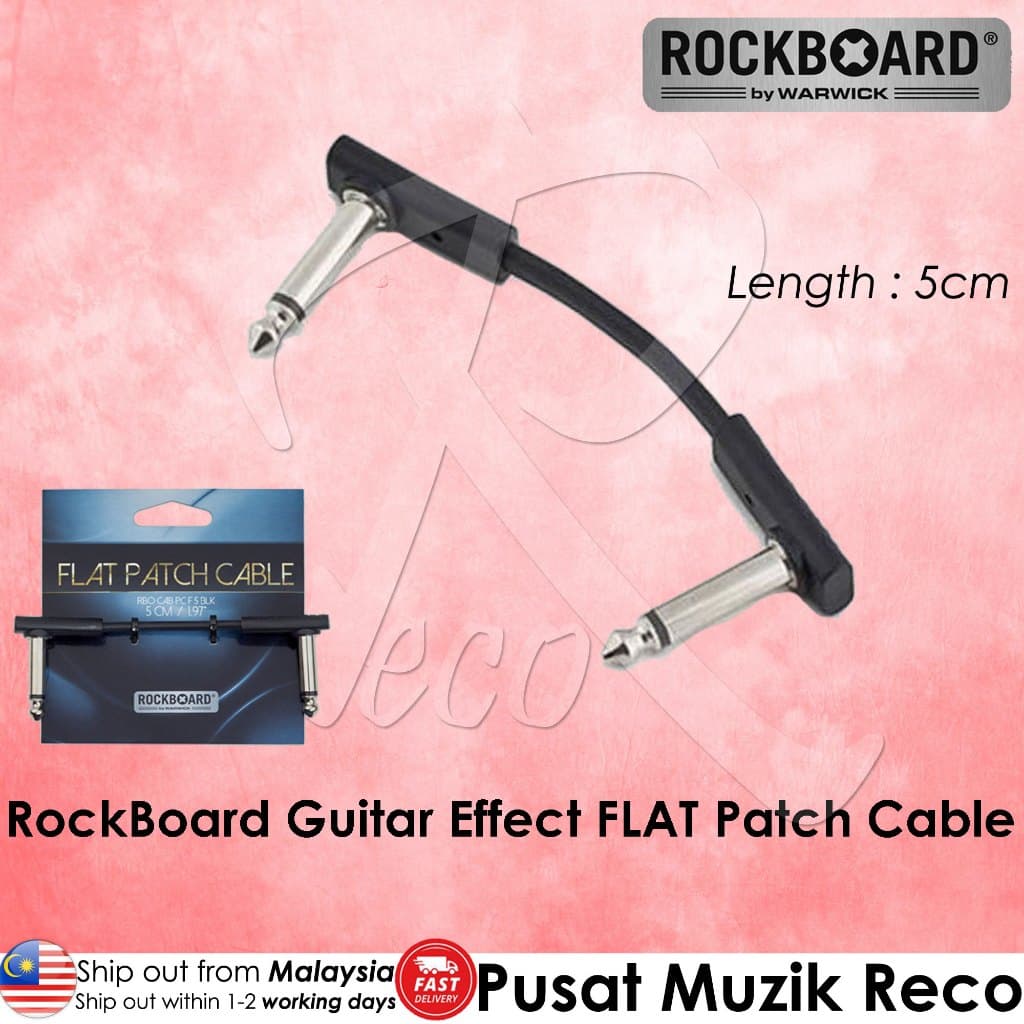

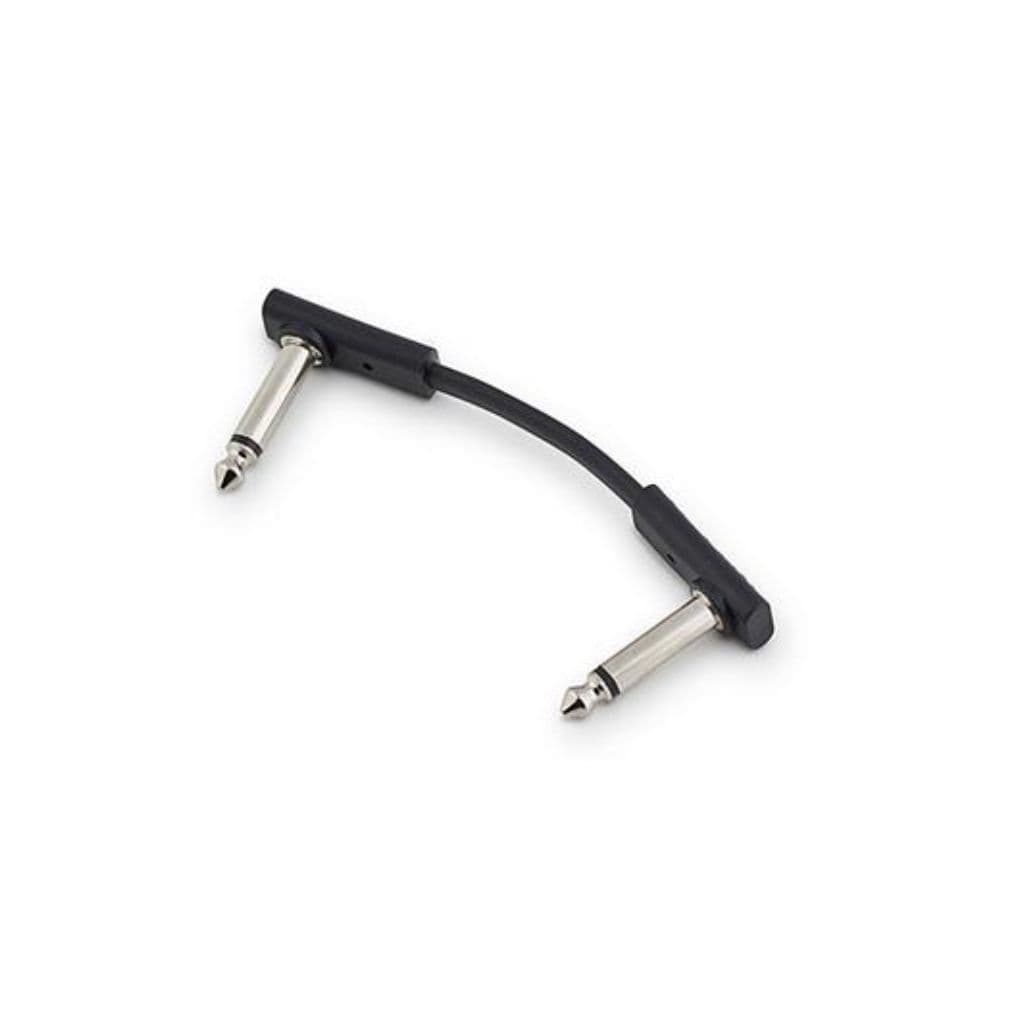

Warwick RockBoard WR-FLATP-5-BK Flat Patch Cable, 5cm, Black

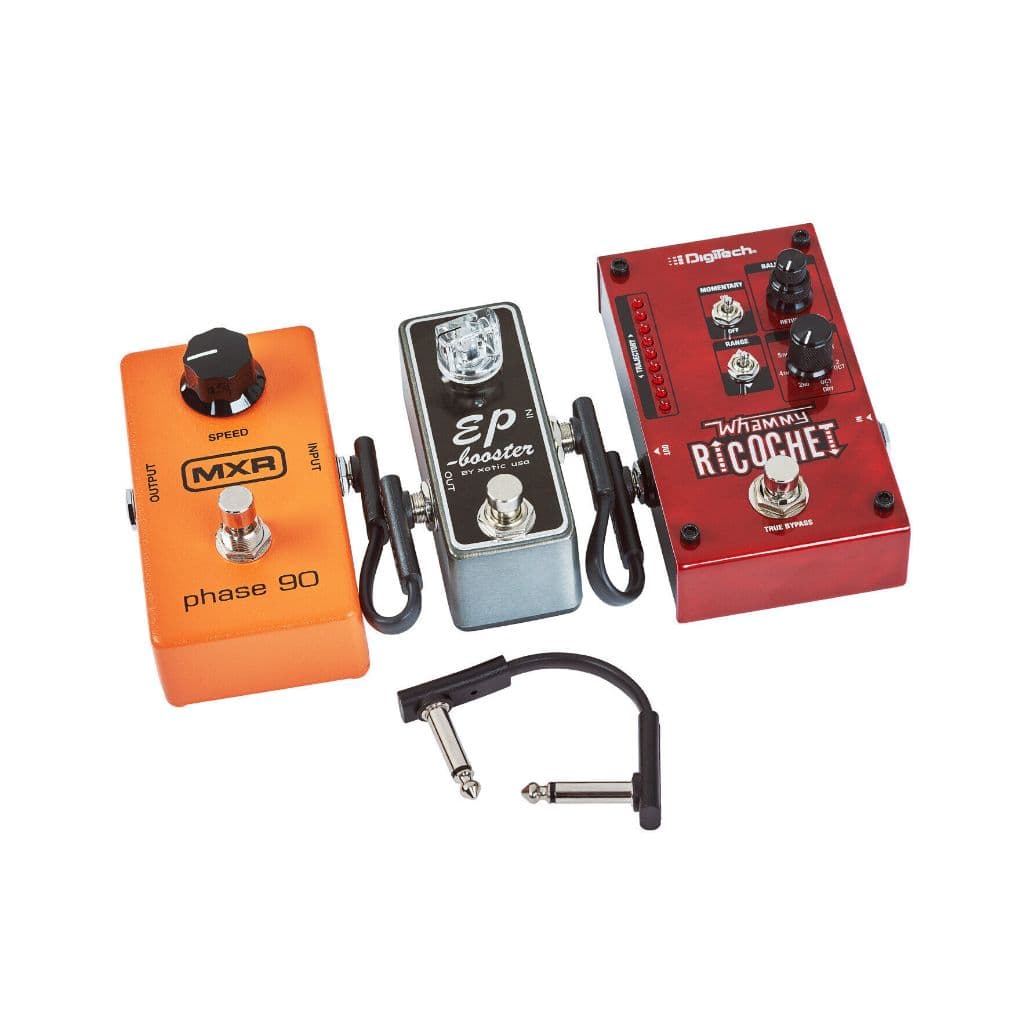

✅ PERFECT FOR — Linking closely spaced effects pedals in a compact rehearsal or studio pedalboard. The RockBoard WR-FLATP-5-BK keeps short connections tidy with a flat cable body and extra-slim angled plugs, helping you spend less board space on cabling.
Why Choose the RockBoard 5cm Flat Patch Cable?
- 📐 Space-Saving Flat Profile — A rectangular 7 × 3 mm cable cross-section helps keep routing compact.

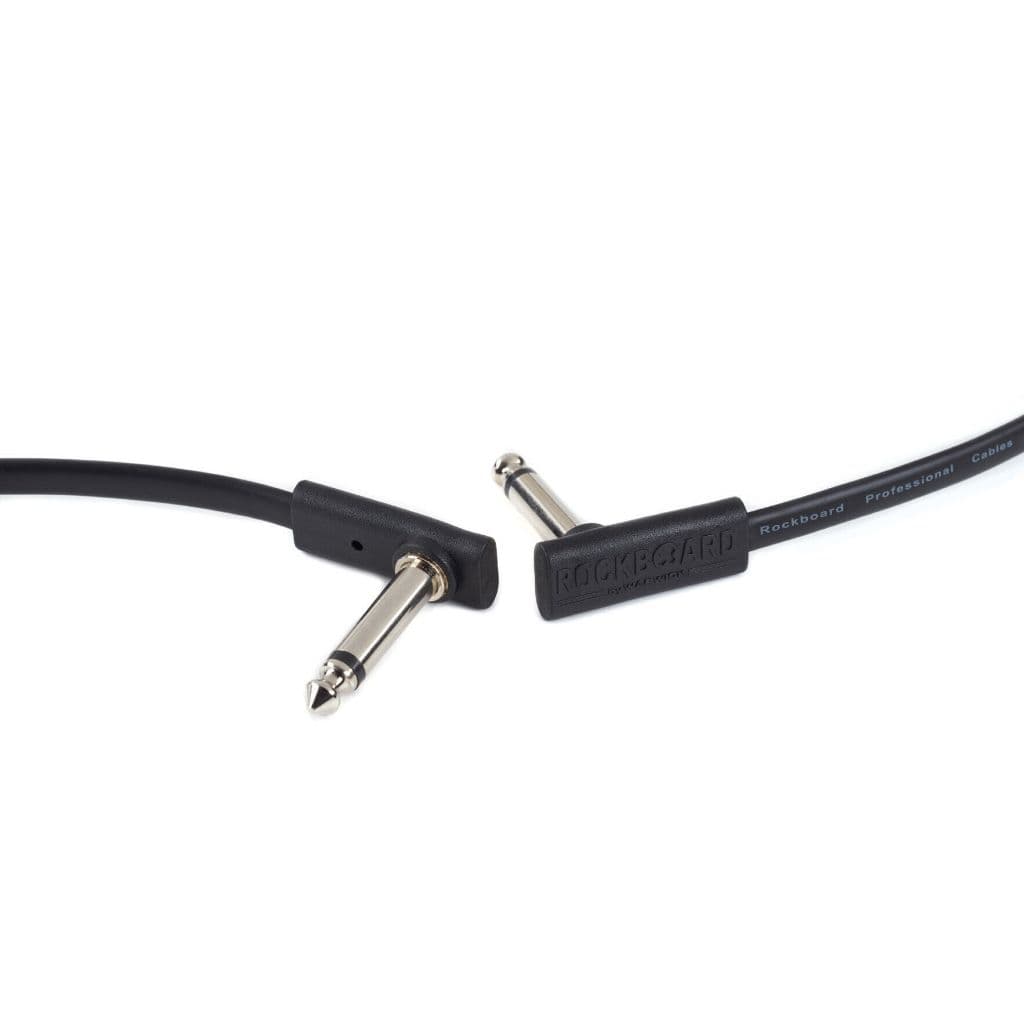

- 🔌 Extra-Slim Angled Plugs — Low-profile jack housings reduce the space needed around pedal connections.
- 🎛️ Short 5cm Connection — Suited to nearby pedal connections where longer cable runs would add unnecessary clutter.
- 🛡️ Copper Conductor and Shield — A copper signal conductor is paired with a twisted copper shield.
- ⚫ Insulated Black Cable — Polyethylene signal insulation and a black PVC outer sheath complete the cable construction.
Specifications
| Specification | Details |
|---|---|
| Brand | RockBoard by Warwick |
| Model | WR-FLATP-5-BK |
| Type | Flat patch cable |
| Length | 5 cm / approximately 1.97 inches |
| Colour | Black |
| Plug design | Extra-slim angled jack plugs |
| Cable cross-section | 7 × 3 mm, rectangular |
| Copper conductor | 20 × 0.12 mm |
| Twisted copper shield | 34 × 0.12 mm |
| Capacitance | Less than 10 pF per decimetre |
| Conductor resistance | Less than 10 mΩ per decimetre |
| Signal insulation | Polyethylene |
| Outer sheath | PVC |
| Working temperature | −15°C to +70°C |
Before ordering: Check the distance and routing between your pedal jacks, allowing room for the plug housings. Confirm the connector requirements of your pedals; this listing does not specify jack diameter or TS/TRS wiring.
Available at Reco Music Malaysia — Free delivery for orders over RM100 to West Malaysia. Fast delivery nationwide. Contact us for more information.

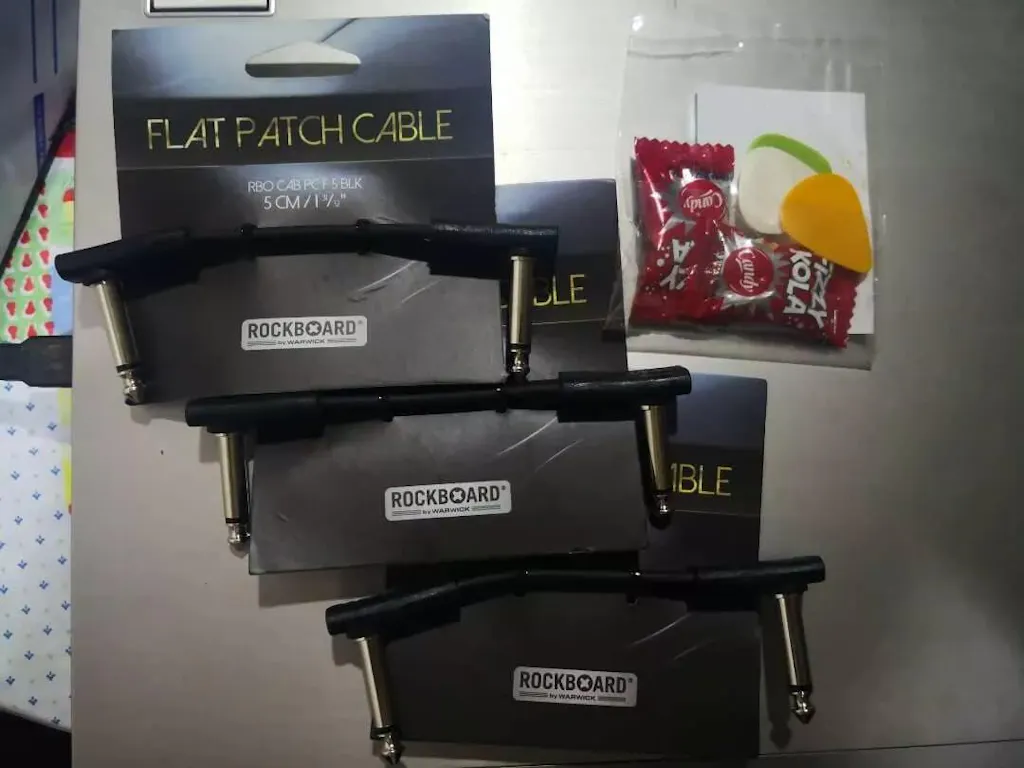

Received in good condition. Worth buying. Affordable prices. Good quality products. Thank you.
