ā PERFECT FOR ā Electric guitar players, repairers and builders adding quick push-button switching to a wiring project. Press the knob to activate or deactivate the switch, making this Alpha pot a practical choice for coil-split, phase, series/parallel and other modification work without pulling the knob upward.
Why Choose Alpha Push-Push Guitar Potentiometer A500K/B500K 8mm/9.4mm?
- š§ Push-Push Switching Action ā Press once to activate and press again to deactivate. This is a push-push switch, not a push-pull pot.
- šø Useful for Guitar Wiring Mods ā Add fast, discreet switching for coil-split, phase, series/parallel and other electric-guitar circuit projects.
- šļø A500K or B500K Values ā Choose A500K audio taper or B500K linear taper to match the response you want from your guitar control circuit.
- š Two Bushing Sizes ā Select the 8mm metric option for many Asian-made guitars or the 9.4mm / 3/8-inch CTS-size option for compatible imperial mounting holes.

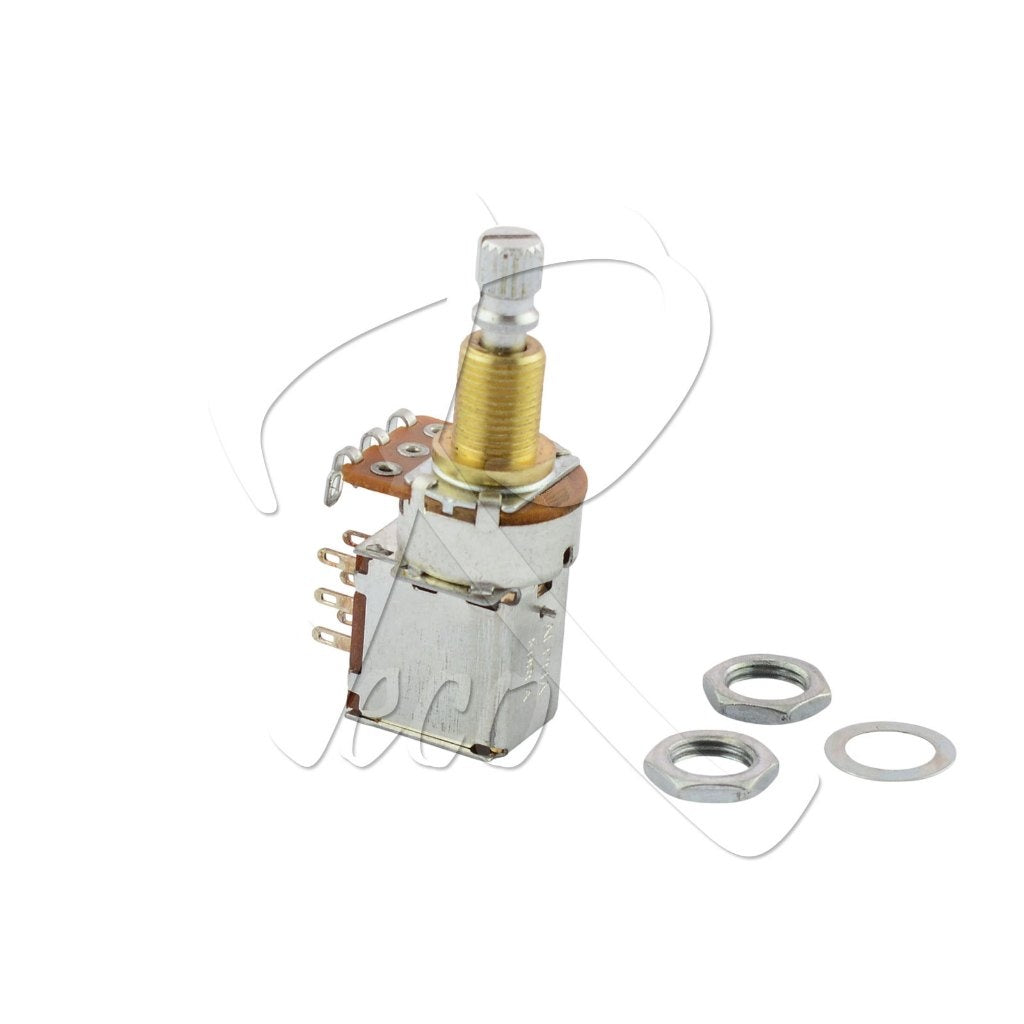

- š ļø Split Shaft with Installation Hardware ā The 6mm split knurled shaft suits many push-on knobs, and each pot includes a nut and washers for installation.
Specifications
| Specification | Details |
|---|---|
| Brand | Alpha |
| Origin | Made in Korea |
| Product type | Push-push guitar potentiometer |
| Switch action | Press ON / press OFF |
| Resistance options | A500K audio or B500K linear |
| Bushing options | 8mm metric or 9.4mm / 3/8-inch CTS-size, not CTS branded |
| Variant models | 8mm-A500K, 8mm-B500K, 9.4mm-A500K and 9.4mm-B500K |

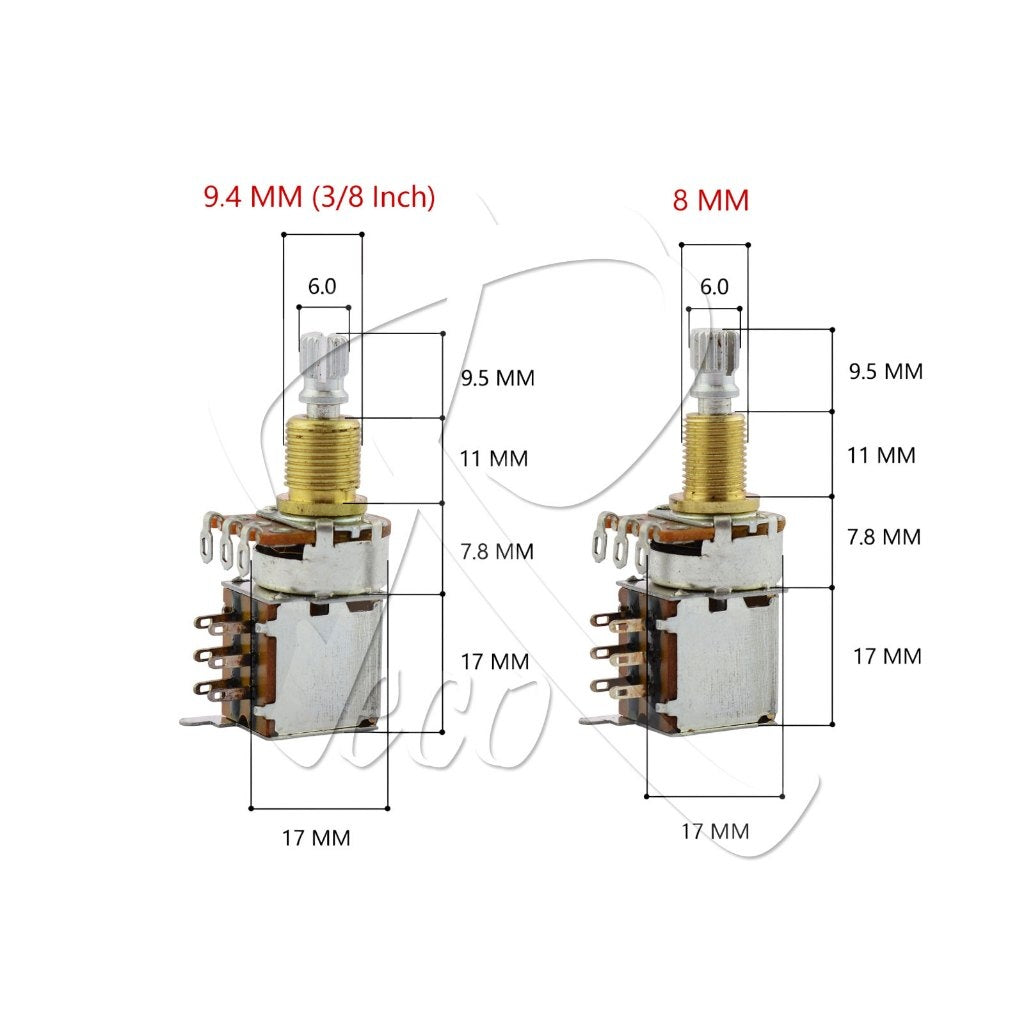

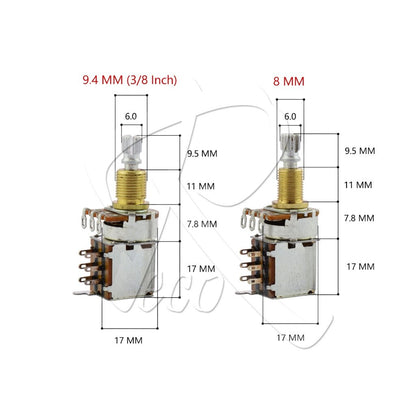

| Shaft | 6mm split knurled shaft |
| Shaft length | Approximately 9.5mm |
| Bushing height | Approximately 7.8mm |
| Switch housing height | Approximately 17mm |
| Material | Metal and PCB switch |
| Compatible with | Electric guitars using compatible 6mm knob fitment |
| Included | 1 potentiometer, nut and washers |
Before ordering: Confirm the bushing size, resistance value, shaft clearance and wiring layout required by your guitar before selecting a variant.
