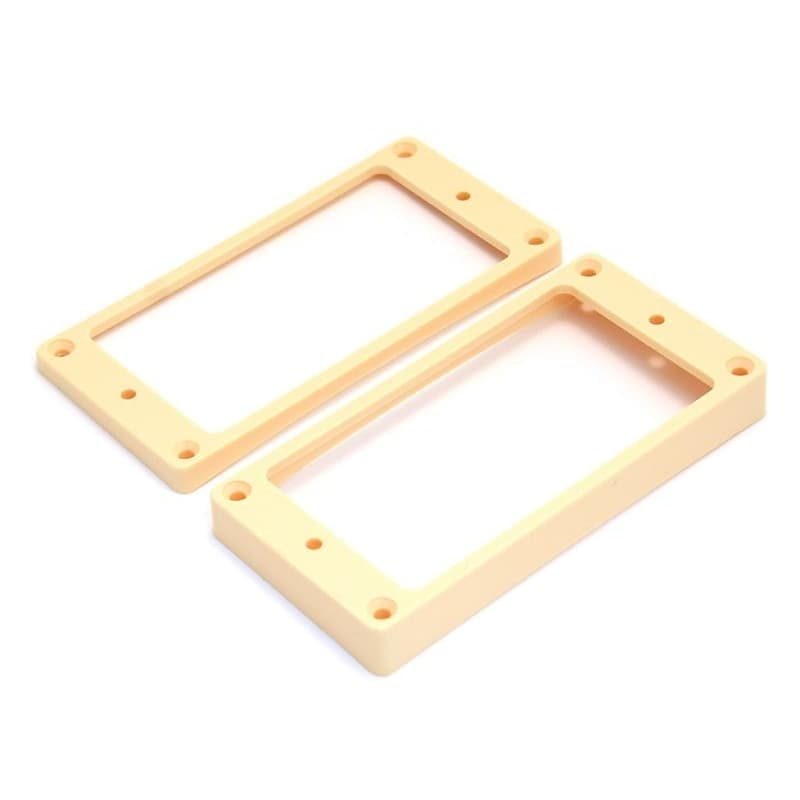

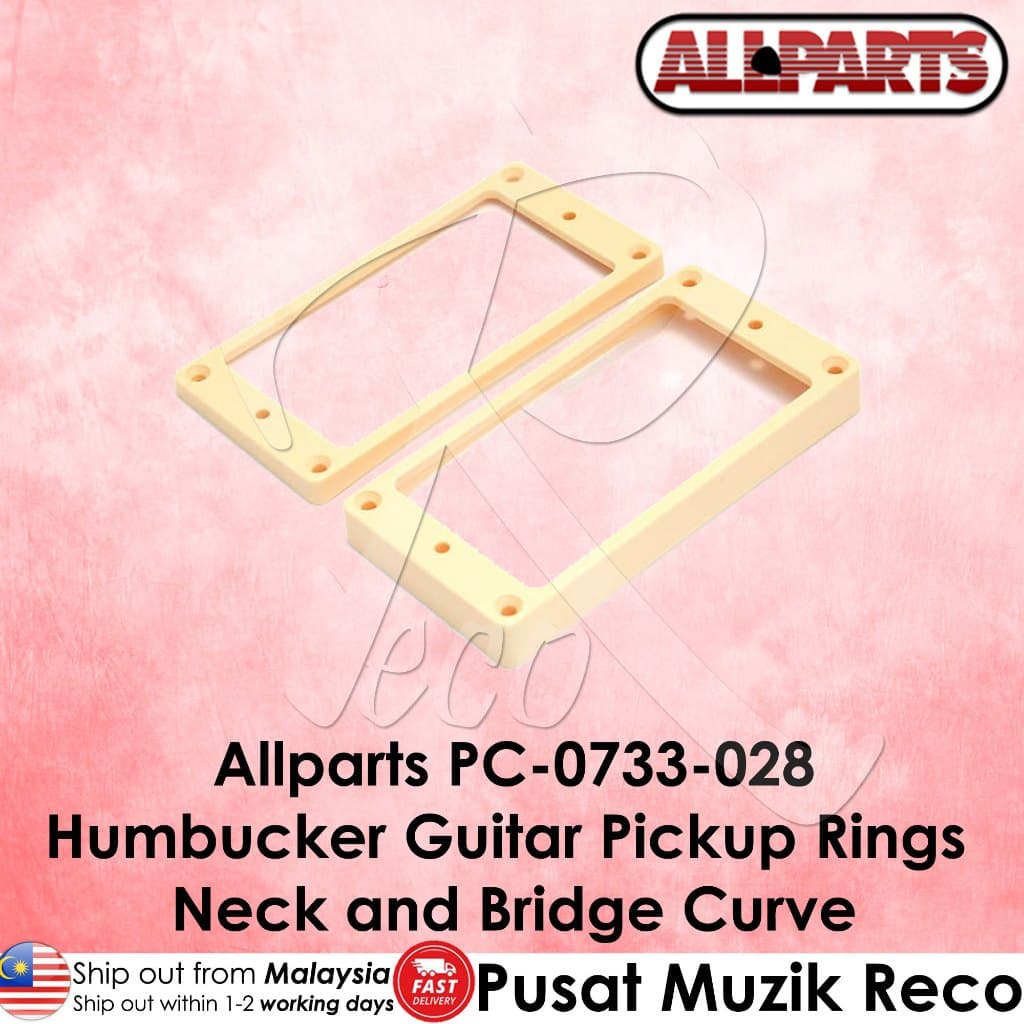

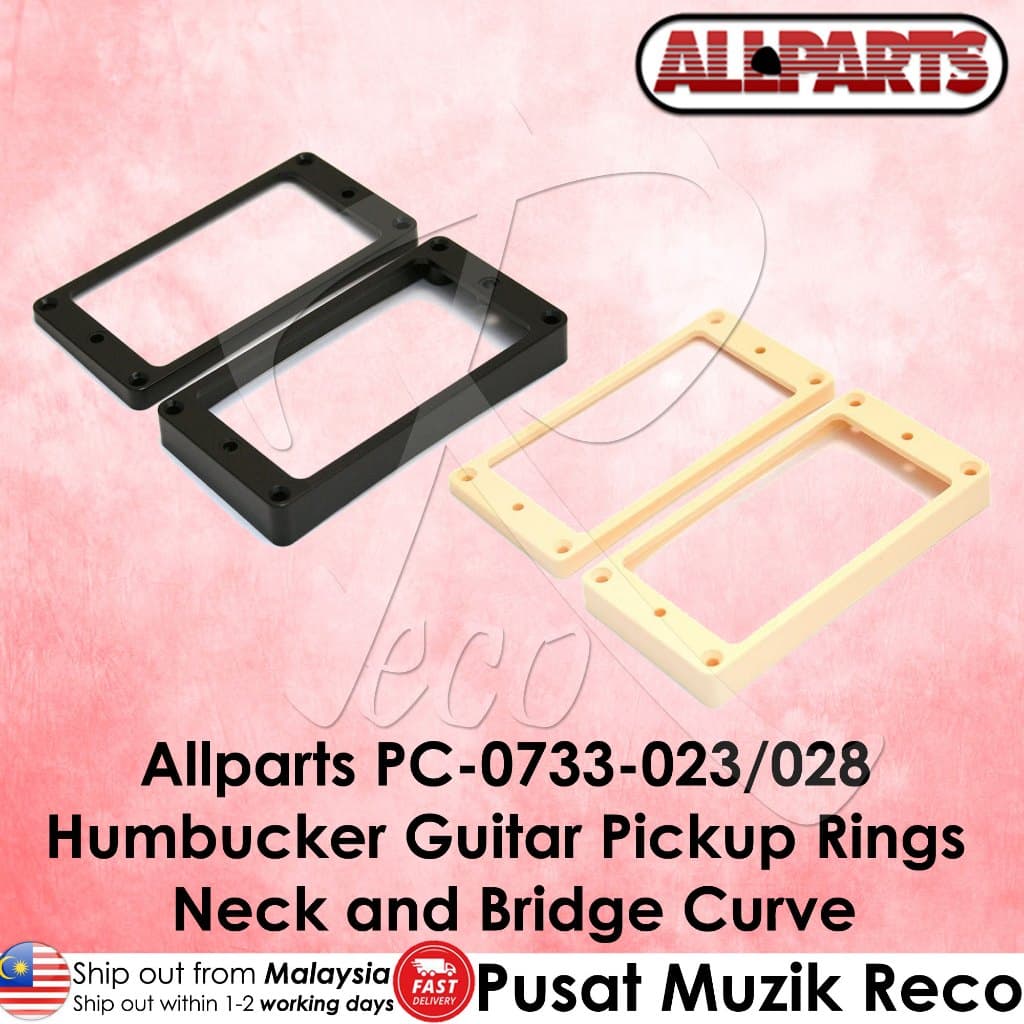

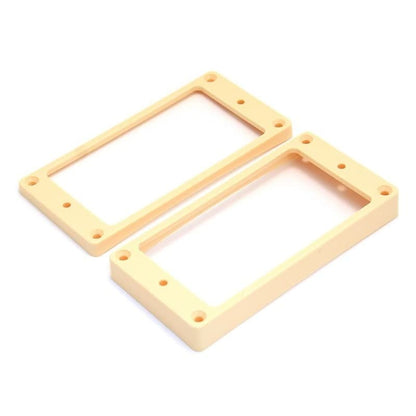

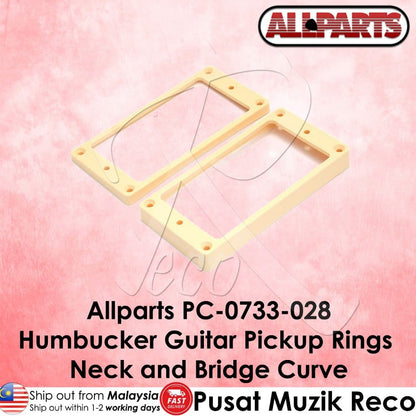

Allparts PC-0733-028 Cream Electric Guitar Humbucker Guitar Pickup Rings Neck and Bridge Curve

Upgrade your guitar’s look and fit with this precision-molded pickup ring set designed for curved-top guitars. Perfect for enhancing the aesthetic and maintaining compatibility with standard humbucker pickups.

✅ Key Features

Set includes 2 rings: one for the neck position (short/slanted) + one for the bridge position (tall/slanted).

Designed with a curved-bottom profile to match guitars with carved tops.

Compatible with standard sized humbucking pickups (for example, Seymour Duncan humbuckers).

Note: Not compatible with certain models such as EMG or Epiphone humbuckers.

Finish colour: Cream / Black

Specifications & Measurements

Overall outer dimensions: 3-9/16″ (length) x 1-3/4″ (width).

Inside dimensions (clear opening): approx 2-3/4″ x 1-1/2″.

Mounting screw spacing: approx 81 mm (center to center).

Bridge ring taper: ~3/8″ → 5/16″.

Neck ring taper: ~7/32″ → 5/32″.

Weight: ~10.1 g (for the set) as indicated in some listings.

 Suitable For / Why Use It

Ideal for replacing or upgrading pickup rings on guitars with carved/arched tops (ex: Les Paul style) where a flat ring may not sit flush.

Gives your guitar a clean, professional aesthetic with the slanted/tapered ring design and curved profile.

Excellent for maintaining proper fit and alignment of uptake rings around humbuckers while matching the top’s curvature.

A cost-effective way to refresh the look of your guitar without major modification.

Installation Tips

Before installation, measure your current ring and mounting hole spacing to ensure compatibility (81 mm spacing is common for this set).

Ensure the bottom curve of the ring sits flush on your guitar’s top — sanding or slight adjustment may be needed if your top is extremely arched.

Use correct screws (check length and head size) so they don’t bottom out or damage the ring or guitar body.

When installing, centre the ring around your humbucker pickup, ensure the slanted/tapered side aligns properly (bridge ring is taller/slanted vs neck ring shorter/slanted).

After installation, check string clearance and pickup height — the ring should not interfere with pickup adjustment or string vibration.

What’s Included

1 × Curved neck-position humbucker pickup ring

1 × Curved bridge-position humbucker pickup ring

Colour: Cream / Black

ℹ️ Important Notes

Ensure your guitar uses standard humbucker-size pickups (not EMG or some Epiphone types) to guarantee proper fit.

The ring set is made for curved top guitars — on flat-top guitars the curve may not align perfectly or may cause slight gap.

Because of the curved bottom design, if you install on a very flat top you may need a thin shim or filler to get a perfect flush mount.

Colour may appear slightly different in real life depending on lighting and finish of your guitar.
